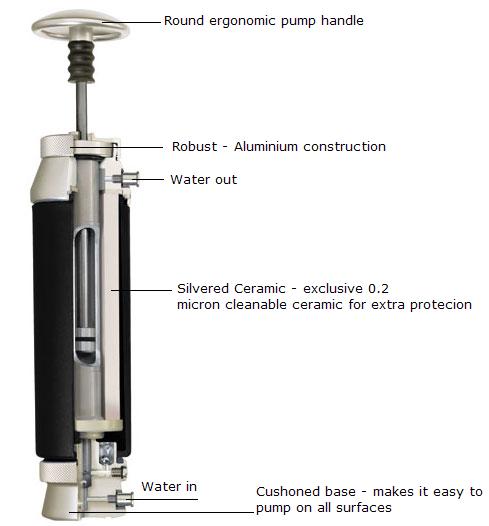

The Rugged Katadyn Pocket Water Filter For long-term extreme use for 1 to 4 persons with 20 year warranty Free Shipping in USA for orders over $100.00
Includes: Prefilter, bottle clip and carry bag
Detailed Katadyn Pocket Specs
OTHER IMPORTANT KATADYN VARIO FACTS
PRODUCT CHARACTERISTICS & BENEFITS
Katadyn Pocket Product Set up ( (download manual) The Pocket requires minimal set up. For best results, try out the Pocket before first field use to familiarize yourself with its operation. 1) Connect Hoses: Push the hose float on to the input hose (hose with prefilter). Position the float approx. 2 inches from prefilter. Attach the input hose to the input barb on the pump base. Push the bottle clip on to the output hose. Attach the output hose to the output barb.2) Flush System: Important: Before first use, flush system by pumping approximately 0.5 litres of water through the unit to remove harmless ceramic dust. See following section on Normal Operation on how to filter water.Normal Operation and away from sediment. 2) Attach the bottle clip on the output hose on to a clean water container*. (Figure 2 3) 3) Hold the filter upright and begin pumping the handle in a slow, steady manner. Make sure the input hose is not kinked. 4) After filling water container with filtered water, remove bottle clip from container and input hose from water source. Continue pumping to remove remaining water from pump body. 5) Store the unit in the carry bag. To prevent the possibility of cross contamination remove the output hose with the clip and store separately in the re sealable bag inside the carry bag. *Note: Before each use, pump and discard a small amount (0.2 litres) of water to remove stale taste. Field Performance Tips water above the sediment. Maintain your Katadyn water system
to keep it operating smoothly. Clogged filter pores. If the filter pores of the ceramic are clogged, the ceramic needs to be cleaned. Never use force when pumping. Remove the element by turning it counterclockwise as far as it will go and lifting it from the housing. Regenerate the ceramic by brushing under running water with the supplied cleaning pad until the light, original ceramic colour appears again. When reassembling hold output barb towards logo on pump housing and turn clockwise as far as it will go while pushing down. 2) Lubricate pump handle o ring. Silicone lubricant is provided with your new unit. Remove handle collar and handle. (Figure 1 1) Clean excess build up from black rubber o ring on bottom of handle. Place a small amount of silicone lubricant all the way around the o ring. Re assemble. 3) If unit pumps easily, but no water flow: Make sure prefilter is submerged. Make sure that input hose is not blocked or pinched. Hold the filter vertically until water flows. 4) Prefilter: Rinse the prefilter in water to remove any particles that may be caught in the strainer. 5) Storage: Your Katadyn water system comes with a carry bag for storage. To prevent the possibility of cross contamination remove the output hose with the bottle clip and store separately in the re sealable bag inside the carry bag. Long Term Storage (After Your Trip
Is Over) 1) Unscrew the pump base and clean the ceramic element by brushing with the supplied cleaning pad. Allow to air dry completely. 2) Rinse the blue plastic sleeve and remove any dirt. 3) Lubricate the o rings and the threads of the filter element and the pump base. 4) Re assemble the filter. 5) Wrap input hose around body and store Pocket inside the carry bag. Note: When removing unit from long term storage, flush the system with one liter of water to remove any stale tasting water. Katadyn Ceramic Filter Capacity Ceramic Filter Installation
Instruction 2) Unscrew the handle collar on the upper part of the ceramic element counterclockwise and remove the pump handle. Lubricate o ring. 3) Remove new ceramic element from packaging 4) Insert pump handle into the new ceramic element and tighten the handle collar clockwise. 5) Push the plastic sleeve over the new ceramic element. Apply a drop of silicone lubricant to the thread of the pump base. Tighten the pump base to the housing clockwise. 6) Flush ceramic element by pumping and discarding the first liter. When You Travel Abroad, Camp or
Backpack… And while you are travelling… • Select non cooked foods (fruits, nuts, etc.) that have intact shells or skins, and clean your hands before peeling the food. • Wash your hands with soap and water thoroughly and often, especially before you eat. Filter all drinking water with your Katadyn Pocket Water Microfilter.
Limited Warranty
